Grekkon Limited’s steps to install drip irrigation systems are a drip installation guide to farmers. Knowing how to install a drip irrigation system helps in system management. Our steps to install drip irrigation systems answers these often posed questions.
It identifies the layout of the drip irrigation system. The size of the land, the direction of the slope, and the height of the gradient are key considerations here. Land size advises on the main pipe and sub-main pipe sizes
Is this drip irrigation by gravity flow or water pump powered? The amount of water will determine the size of the blocks and the number of hydrants put up. Also, water cleanliness and pressure type will guide the filter type

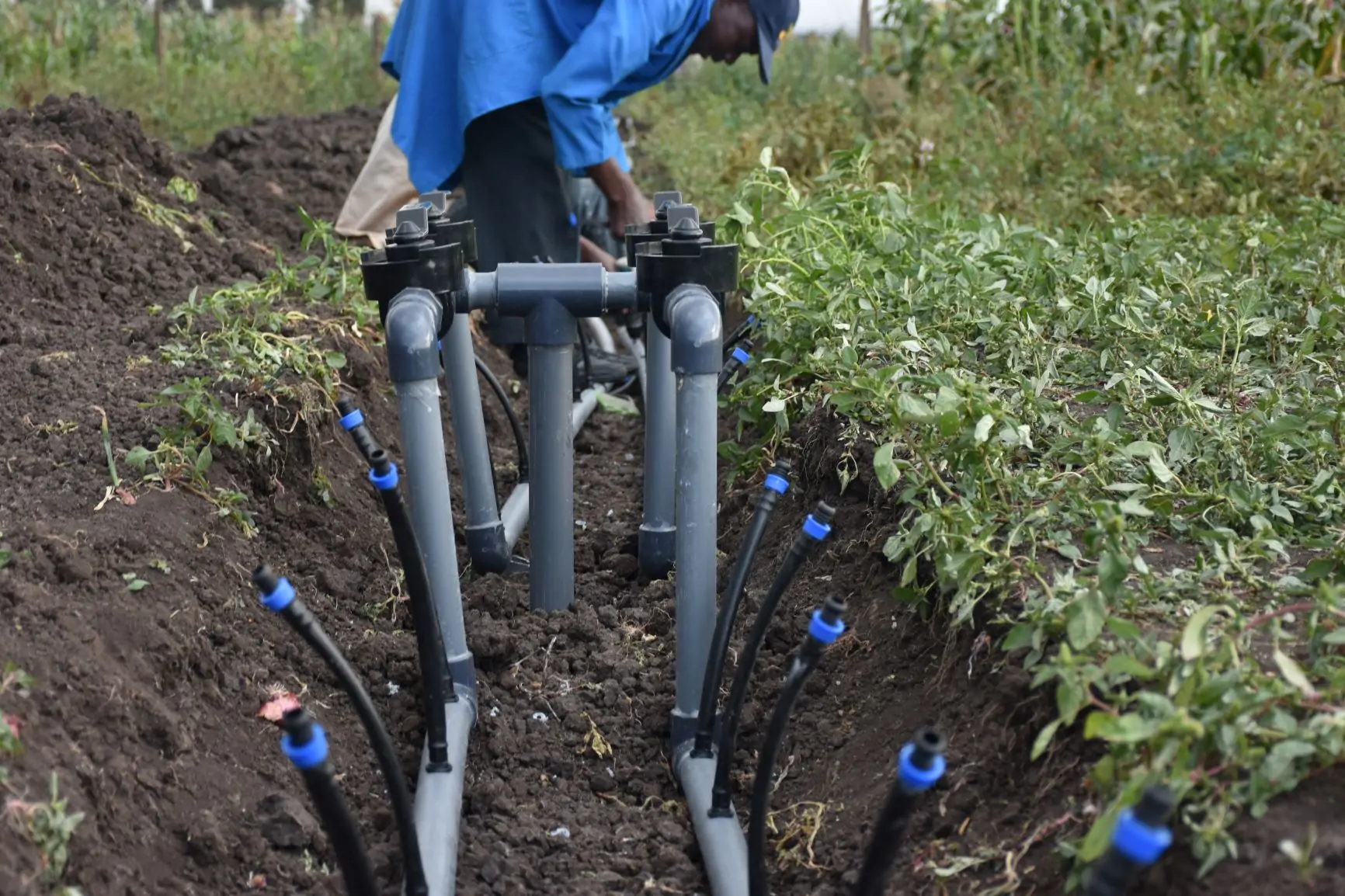

Trenching is for PVC main and sub-main lines which are subsurface. HDPE pipes are surface pipes unless the farmer opts to bury them
HDPE pipes laid on the surface with drip pipes connected
i. Vegetables. Your drip lines will connect to the sub-surface PVC sub-main pipes by a 30cm long 16mm HDPE pipe. The 16mm HDPE connection to the PVC pipe is by a starter connector. An offtake connector joins the 16mm HDPE pipe to the drip tape. The end cap is at the end of the drip line. A drip to drip connector is used on damaged drip tape or when 2 drip tapes connect
ii. Fruit tree irrigation. Your 16mm HDPE pipe will connect to the sub-surface PVC or HDPE sub-main pipes by a starter connector. The end line is at the end of the 16mm HDPE line. A PE to PE connector is used on damaged HDPE pipe or when 2 HDPE pipes connect. Online button drippers are inserted on the 16mm HDPE for each tree. This is how to connect button drip emitters for fruit trees in orchards
Pre-perforated drip line emitters are also installed for fruit tree irrigtaion. The difference however is that the pipe is 0.8mm to 1mm in thickness. This is different from the one installed on vegetables which is 0.3mm to 0.4mm
The 2 systems will share the mainline. A new sub-main line will be laid for the drip irrigation system
3 row onion drip tapes laid on planting beds
A single row drip line in water melon
2 row drip lines on a cabbage crop
Our drip installation cost by land size is
| Acreage | Size in Meters Square | Price in KES |
| Kadogo drip kit | 50 to 200 | KES 3,500 |
| 1/8th acre | 506 | KES 17,500 |
| 1/4 acre | 1,024 | KES 33,000 |
| 1/2 acre | 2,025 | KES 65,000 |
| 3/4 acre | 3,036 | KES 80,000 |
| 1 acre | 4,048 | KES 125,000 |
Our solar water pump price in Kenya is determined by these specifications; water flow rate,…
Grekkon Limited's solar powered irrigation system (SPIS) for agriculture in Kenya utilises solar energy as…
How does drip irrigation work is a common question we get from new farmers. Drip…
PVC is short for Polyvinyl Chloride. Our irrigation grade PVC pipes carry out irrigation installations…
Potato farming in Kenya through irrigation is done by overhead sprinklers, rain hose kits, or…
Simple drip irrigation in Kenya is a system by Grekkon Limited for small farms, or…
View Comments
Hi. I need to install one asap in one acre Elementaita Nakuru. How do you know the size for different crops? eg. This time i want to put for onions. what if next time i need for cabbages? do u use the same pipes or you install new ones for every crop? I am an amateur in this area. Thank you
Good evening Simon,
When we undertake to install your 1 acre drip irrigation system, we'll advice you on how it is done, based on how we'll set up your system
Please share your contact number on info@grekkon.co.ke
Best regards,
Customer Service
What does the installation cost cover. Interested in 1/2 acre system on a dam water fed irrigation
Good morning Erastus,
Our drip irrigation kit installation cost covers all labour; wages & logistics
When and where do you intend to have your 1/2 acre drip kit installation done?
Best regards,
Customer Service
Good morning Erastus,
Our drip irrigation kit installation cost in Kenya covers;
1. Casual wages
2. Technician's remuneration
3. Technician's facilitation to, from and while on site
Best regards,
Customer Service
How many sukuma wiki plants can kadongo irrigate.
I'm interested in kadongo
Good evening Chris,
The number of sukuma wiki plants irrigated by the kadogo drip irrigation kit depnds on your crop spacing
Best regards,
Customer Service
I am interested in drip irrigation. I would like to meet your field officers to assess my 5 acre farm
I would like 3inch 100-130m hdpe pipe, what's the price? Please share your Kenya contact (telephone ) details for further details. Thank you.
Do you drill shallow wells around 80 to 100fts. If yes, how much will it cost in Loitoktok area? Thanks for good work you're doing
Dear Joram,
Thank you for the compliment. No, we do not drill boreholes below 80M.
Best regards,
Customer Service
Enquiring cost solar pump rated 5m^3\h to a depth of 150m with its accessories?
Dear John,
Good afternoon and thank you for your inquiry. This submersible solar water pump price is Kes 620,000, which includes solar panels and installation cost but not labour.
Where is your borehole located?
Best regards,
Customer Service
